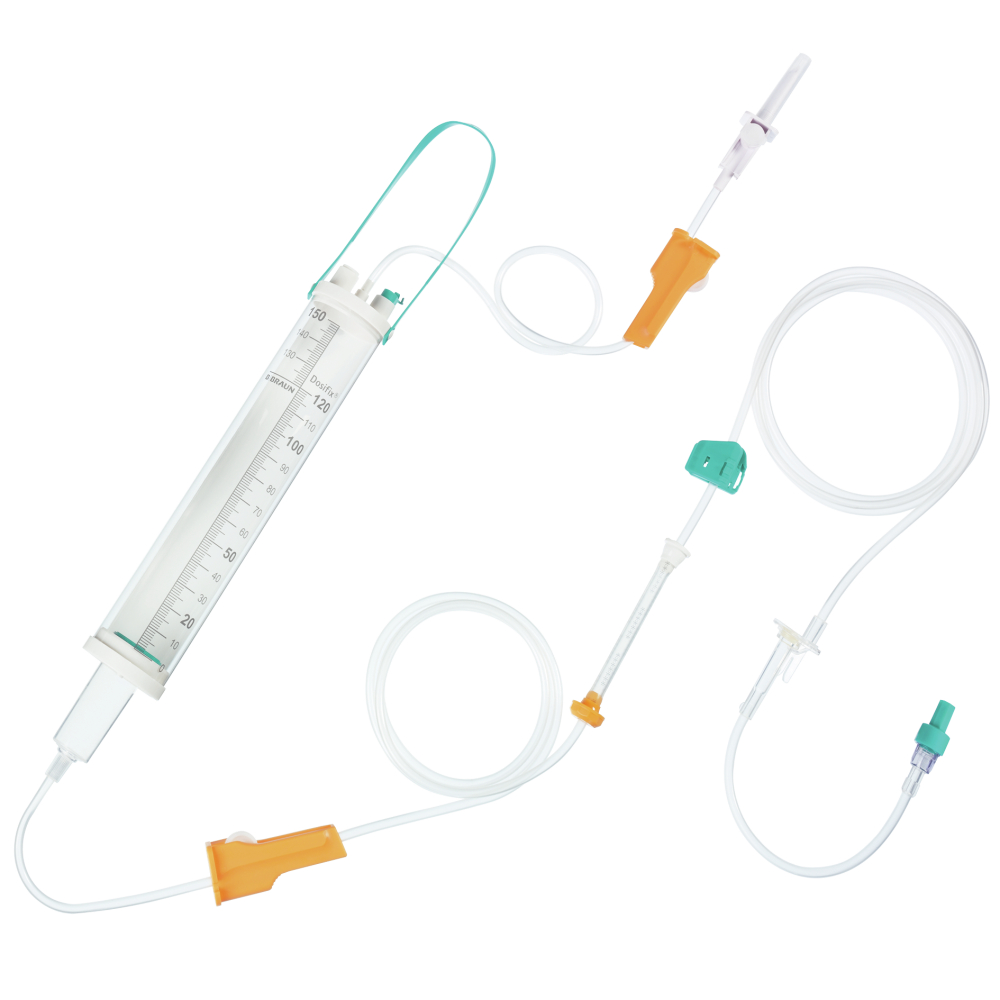

Infusomat®plus Line Type Dosifix®
I.V. administration set with dosing container and dedicated pump segment. For gravity and pressure use up to 2 bar
Infusomat®plus Line Type Dosifix® are dedicated IV administration sets for the administration of standard infusions in combination with B. Braun Infusomat® compactplus. The product consists of a 150ml burette as a dosing container, a PVC line (not manufactured with DEHP), alternatively a PUR line (not manufactured with PVC and DEHP) and a silicon pump segment. At the end of the tubing each set has got a PrimeStop cap. The drip chamber with AirStop membrane (<15 μm pore size) is located below the burette. In addition, one Infusomat®plus Line Type Dosifix® variant includes PUR tubing and is UV-protected.
Advantages
- Piercing spike with bacteria-tight air vent for usage of all types of containers
- Functional hanger for stabilization
- 150ml burette
- Safeflow admixture port for needle free or needle based drug admixture in dosing container
- Highlighted scaling values and floating swimmer
- Available with 20ml macro dropper
- AirStop membrane (<15 μm pore size) (SafeSet version)
- Safeflow injection port (needle-free) or Eurofix injection port (needle-based) for bolus injections
- PrimeStop for leakage-free priming
- Set based anti free-flow clamp, automatically clamps the line whenever the tubing is removed from the pump
- Roller clamp for flexible adjustment of flow rates with integrated spike cover for safe disposal
- Different set designs are available
