Introcan Safety® Deep Access

Safety IV Catheter for deep vein access

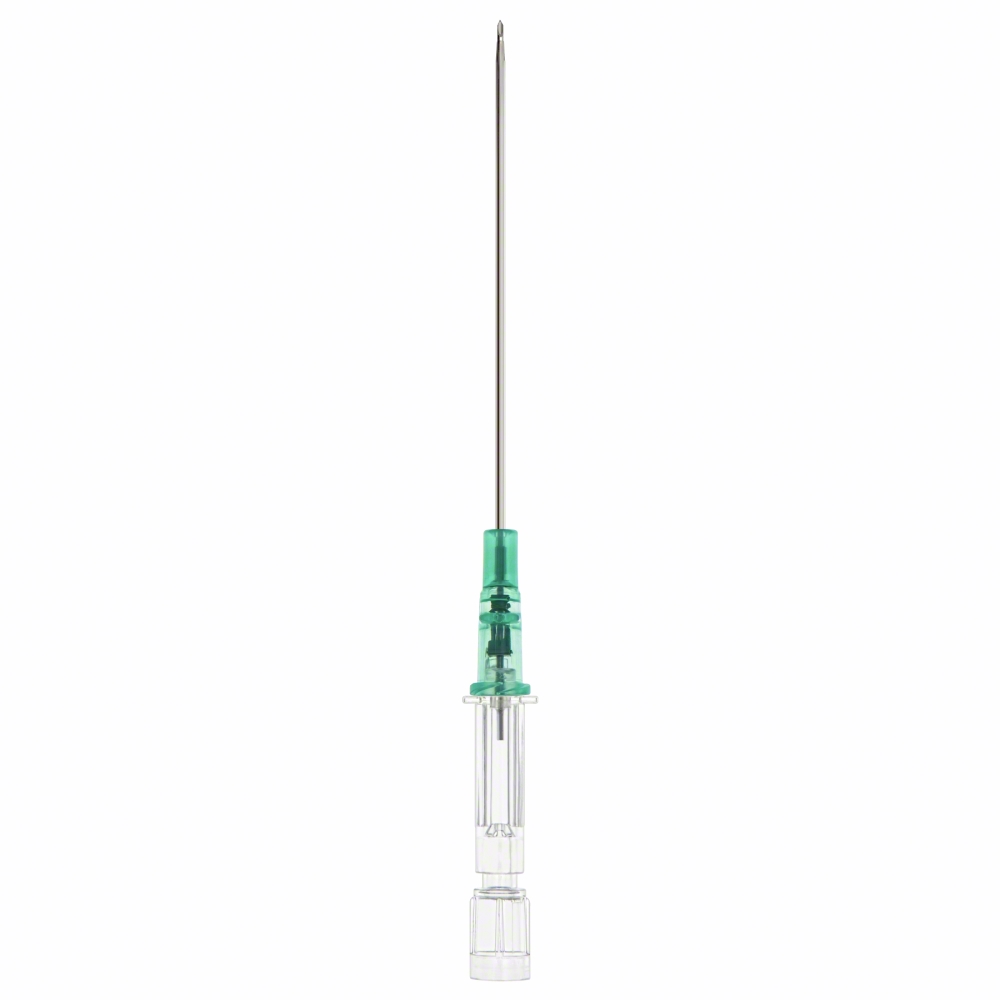

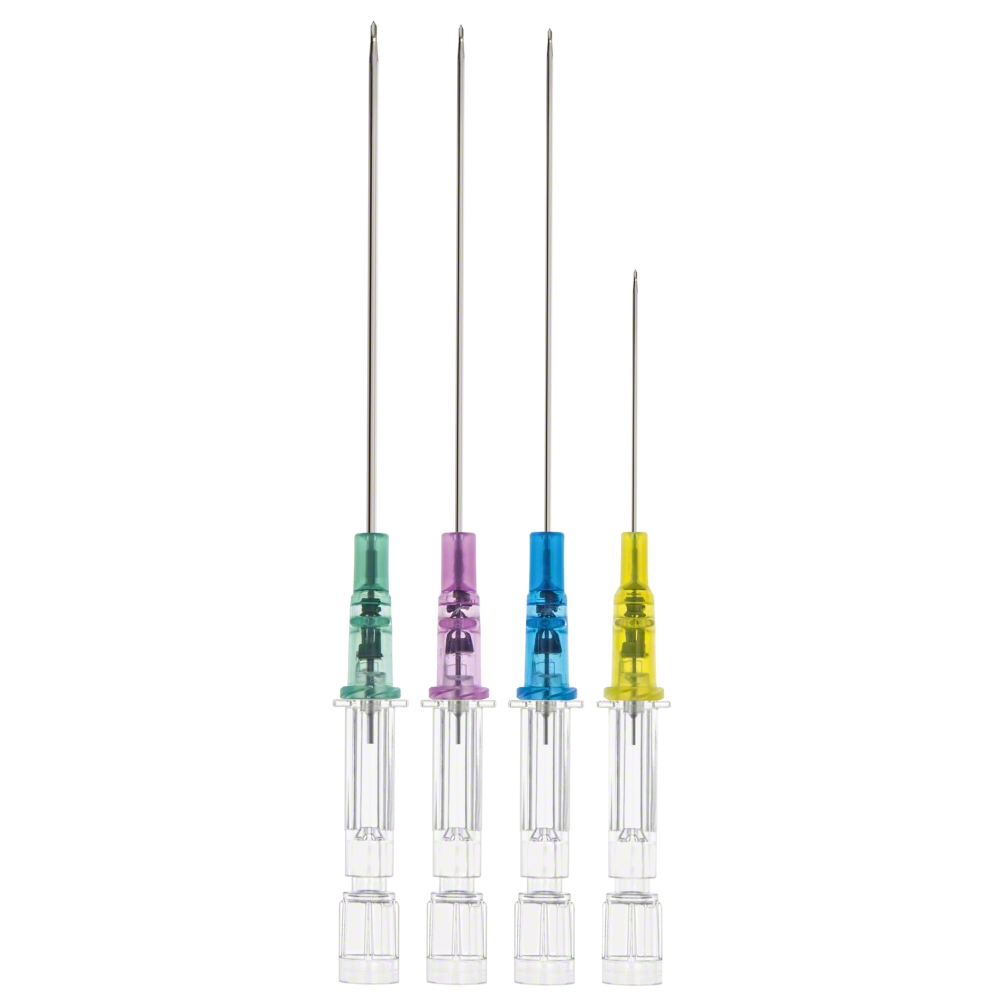

Introcan Safety® Deep Access is a peripheral IV catheter with a passive fully automatic needlestick protection. It is designed for difficult intravenous access (DIVA) patients and allows access to deeper veins thanks to its longer catheter(G18-22 x 64mm / 21/2 in; G24 x 32mm / 11/4 in). DIVA patients can be clustered as the following:

  • Pediatric / Neonate patients
  • Overweight or obese patients
  • Overage or chronically ill (i.e. diabetes) patients
  • Emergency / Acute (i.e. skin burn, haematoma, dehydration) patients

It is a single-use device to generate intravascular and tissue access to sample blood, monitor blood pressure, or administer fluids and blood intravascularly. Introcan Safety® Deep Access is also indicated for subcutaneous infusion therapies and 300 PSI power injector applications.

Advantages

Deep vein access – The longer length of the catheter allows to access deeper veins and gives more flexibility to choose veins. 1, 2, 3, 4, 5

A longer part of the capillary tubing stays in the vein and helps to prevent catheter dislodgements and infiltrations. 1, 3, 4, 5, 6

Longer extended dwell catheter for increased survival rates compared to standard length catheters.7

Passive safety shield - A passive fully automatic protection helps eliminating needlestick injuries and related infections. It deploys automatically, cannot be bypassed and requires no user activation. 8, 9

Ultrasound visibility – Cannula tip visible under ultrasound, providing a visualization aid during the insertion process and therefore helps to increase the chance of a successful placement.10,11,12,13

Universal Back Cut Bevel – Allows for a wide choice in insertion angles and is designed for minimal puncture trauma.14

Radiopaque Stripes - For a good visibility of the catheter capillary under X-Ray.

Power Injectable – Pressure rated for contrast media application at 300 PSI

IV catheter material available in Polyurethane (PUR) for a soft and more comfortable in-dwelling performance15

Not manufactured with DEHP, Latex/Natural Rubber, PVC

Note

Regional labels / article numbers for Introcan Safety® Deep Access:

Europe, Australia: Article code + Annex "-01"
North America: Article code + Annex "-02"

  1. Elia F., Ferrari G., Molino P., Converso M., De Filippi G., Milan A., Aprà F. Standard-lengthvcatheters vs long catheters in ultrasound-guided peripheral vein cannulation. AmericanvJournal of Emergency Medicine 2012; 30(5): 712-716
  2. Fabiani A., Dreas L., Sanson G. Ultrasound-guided deep-arm veins insertion of long peripheral catheters in patients with difficult venous access after cardiac surgery. Heart and Lung: Journal of Acute and Critical Care 2017; 46(1): 46-53
  3. Paladini A. Chiaretti A, Sellasie KW, Pittiruti M, Vento G. Ultrasound-guided placement of long peripheral cannulas in children over the age of 10 years admitted to the emergency department: a pilot study. BMJ Paediatrics Open 2018; 2:e000244. doi:10.1136/bmjpo-2017- 000244
  4. Scoppettuolo G., Pittiruti M., Pitoni S., Dolcetti L., Emoli A., Mitidieri A., Migliorini I., Annetta M.G. Ultrasound-guided “short” midline catheters for difficult venous access in the emergency department: a retrospective analysis. International Journal of Emergency Medicine 2016; 9(1): 1-7
  5. Meyer P, Cronier P, Rousseau H, et al. Difficult peripheral venous access: clinical evaluation of a catheter inserted with the Seldinger method under ultrasound guidance. J Crit Care 2014; 29(5): 823-827
  6. De Prospo T., Attini A., De Giorgi R., Farinelli S., Joli D., Maddalena F., Marchisio U., Geninatti S. The assessment of the effectiveness of long vs standard-length catheters in reducing complications: a randomized controlled trial. Assistenza infermieristica e ricerca: AIR 2015; 34(3): 116-124
  7. Bahl, A., Hang, B., Brackney, A., Joseph, S., Karabon, P., Mohammad, A., ... & Shotkin, P. (2019). Standard long IV catheters versus extended dwell catheters: A randomized comparison of ultrasound-guided catheter survival. The American journal of emergency medicine, 37(4), 715-721.
  8. Sossai, Dimitri, et al. "Efficacy of safety catheter devices in the prevention of occupational needlestick injuries: applied research in the Liguria Region (Italy)." Journal of preventive medicine and hygiene 57.2 (2016): E110.
  9. Tosini, William, et al. "Needlestick injury rates according to different types of safety-engineered devices: results of a French multicenter study." Infection Control & Hospital Epidemiology 31.4 (2010): 402-407.
  10. B.Braun Medical Inc. (2017). Longer Introcan Safety - Echogenicity Visibility Evaluation. Engineering Test Report.
  11. Egan, Grace et al. “Ultrasound guidance for difficult peripheral venous access” Emergency medicine journal: EMJ 2013; 30 (7): 521–526
  12. Miller C. Product selection and evaluation. In: Alexander M, Corrigan et al. Infusion Nurses Society. Infusion nursing - an evidence-based approach. 3. Edition. Philadelphia, Pa. [u.a.]: Saunders Elsevier 2009; 437-446
  13. Paladini A. Chiaretti A, Sellasie KW, Pittiruti M, Vento G. Ultrasound-guided placement of long peripheral cannulas in children over the age of 10 years admitted to the emergency department: a pilot study. BMJ Paediatrics Open 2018; 2:e000244. doi:10.1136/bmjpo-2017- 000244
  14. Suzuki, Toshiyasu, et al. "Differences in penetration force of intravenous catheters: effect of grinding methods on inner needles of intravenous catheters." Tokai J Exp Clin Med 29.4 (2004): 175-181.
  15. Maki D.G. Ringer M. Risk Factors for infusion-related Phlebitis with Small Peripheral Venous Catheters: A randomized Controlled Trial. Ann Intern Med. 1991 May 15; 114(10):845-54.
