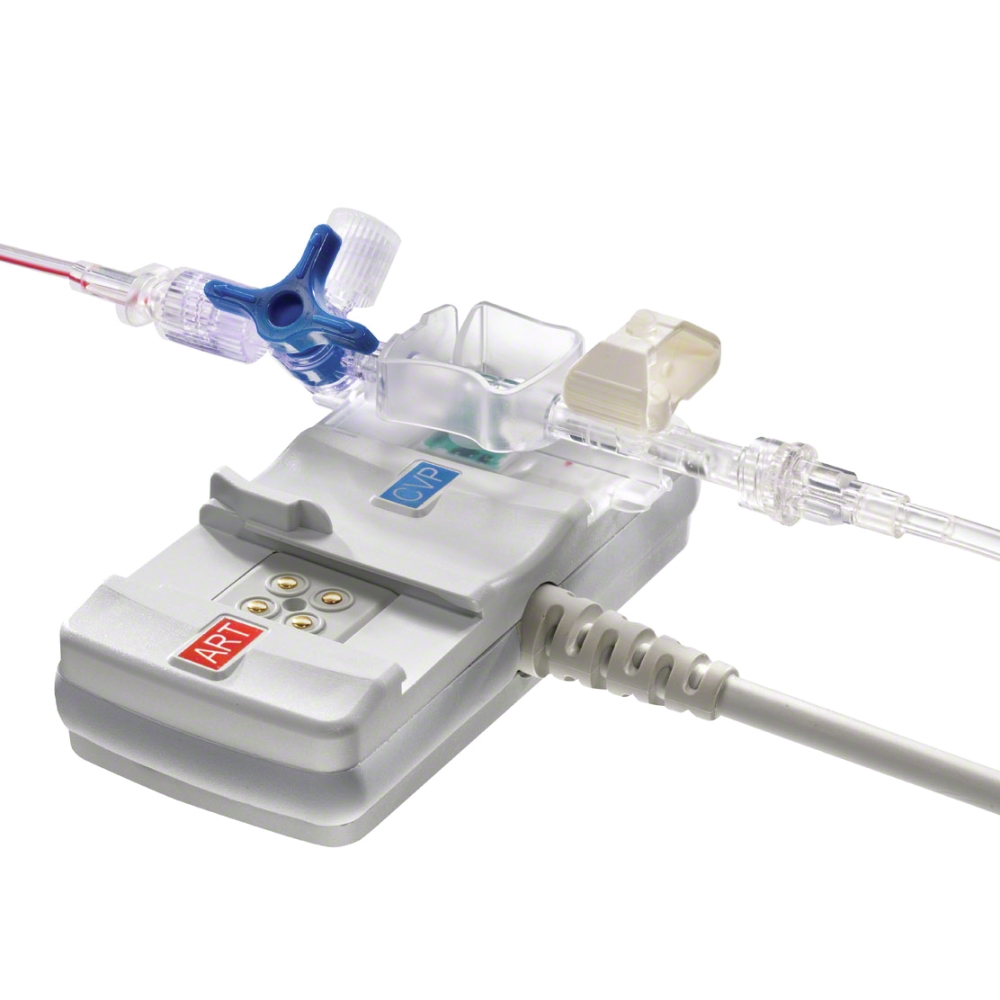

Reusable Transducer Board
For continuous physiological pressure monitoring and the assessment of other hemodynamic parameters
Combitrans EasyClick (EC) Standard Portfolio
- CombitransEC single and Multi-Line Monitoring Kits
- ExadynEC Monitoring Kits for arterial / venous pressure measurement
- CombitransEC Haemofix Monitoring Kits for closed blood sampling
Flush System
- Continuous flush rate of 3 ml / h at 300 mmHg
- Fast flush rate of > 2 ml / s
Sensor
- Pre-calibrated sensor with consistent electrical characteristics
- Wireless contact with the transducer board
Housing
- Transparent housing with a straight flow channel for easy click-in to reusable transducer boards
Three-Way Stopcock
- Color-coded three-way stopcock, Off / On version
Pressure Tubing
- Color-coded pressure tubing available in lengths from 20 to 240 cm
Reservoir for Closed Blood Sampling
- Available in 2.4 ml and 4.8 ml volumes versions for ICU and OR

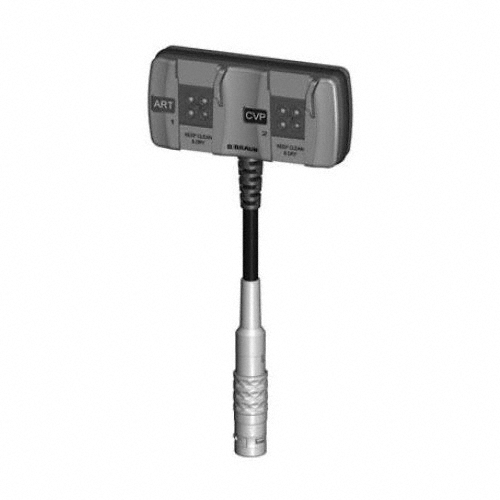

Transducer Board

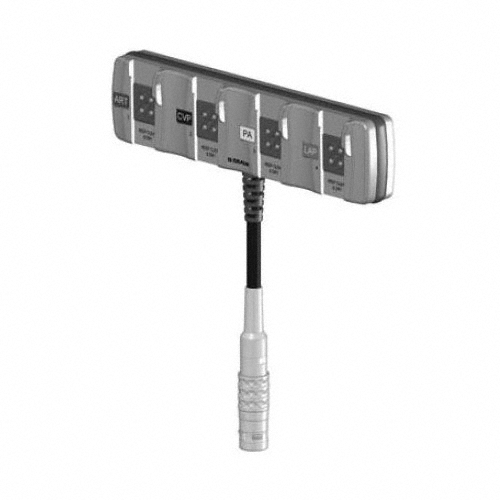

- Transducer boards for single, dual, triple, or quadruple pressure transducers (including CombitransEC Miniboard)
Advantages
Sensor
- Compact and 100% tested units for excellent pressure transmission
- Modern chip technology for an accurate registration of values
- Precalibrated sensor with constant electrical parameters
- Fluid channel for easy air-bubble free filling
Components
- Cordless disposable transducer
- Flush device: Continuous flush rate of 3ml/h at 300 mmHg. Quick flush rate of > 2ml/s.
- Transparent housing for easy visual surveillance
- Discofix®-3: Three-way stopcock Off/On version. Colour coded.
- Combidyn pressure tubing lines: Optimised for pressure measurement. Colour coded.
